How to Distribute Panels Across MPPT Inputs

MPPT stands for Maximum Power Point Tracking — it is the inverter's built-in optimizer that continuously finds the best voltage and current combination to extract the most power from your panels. Think of it as a GPS for electricity: it constantly adjusts to changing conditions like passing clouds, rising temperatures, and shifting sun angles throughout the day.

Most residential inverters have 1 to 3 MPPT trackers, and each one operates independently. Each MPPT handles its own group of panels (called a string or multiple parallel strings). The central question when designing your system is: how do you decide which panels connect to which MPPT?

One warning before we start: independent does not mean identical. On a growing number of inverters the trackers have different current limits and accept a different number of strings — one strong input plus one weaker one is a common design. Section 6 covers how to spot this and what it changes, because it is the detail that most often turns a plan that looks fine on paper into an input you have overloaded.

If all your panels face the same direction, sit at the same tilt angle, and receive unobstructed sunlight throughout the day — a single MPPT is all you need. Every panel in the array produces nearly identical voltage and current, so one tracker optimizes them all perfectly with no compromises.

Even budget inverters with a single MPPT perform excellently in this scenario. The entire array acts as one unified power source, making the system simpler to design, install, and troubleshoot. This is the cheapest and most straightforward configuration available.

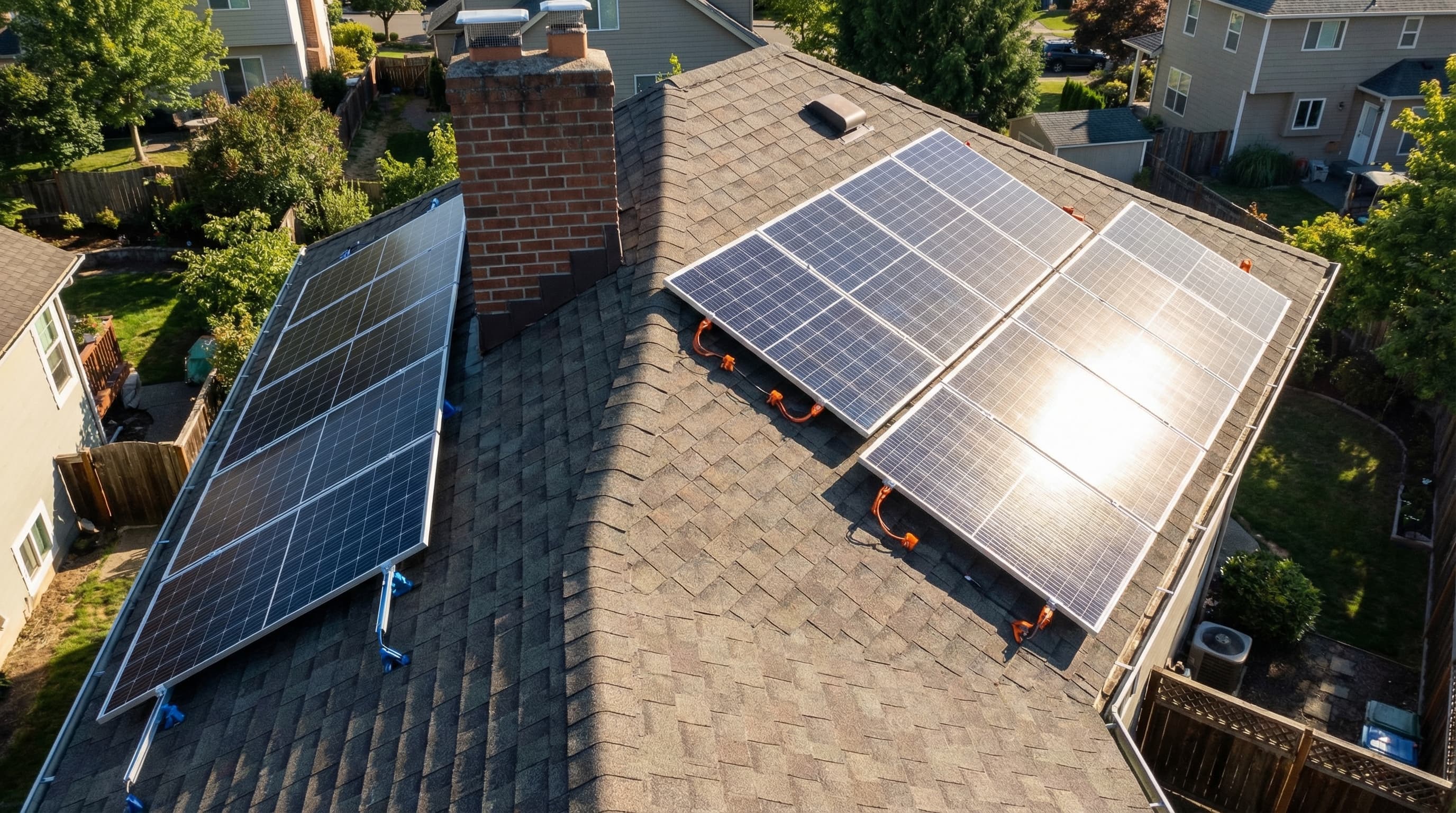

The most common reason for using 2 MPPTs is an east/west roof layout. In the morning, the sun hits east-facing panels directly while the west panels receive only angled, low-intensity light. In the afternoon, the situation reverses. If both groups share a single MPPT, the tracker is forced to compromise — it cannot optimize for both orientations simultaneously, and the lower-producing group drags down the performance of the higher-producing one.

With separate MPPTs, each tracker independently optimizes its own group of panels. The east string peaks in the morning, the west string peaks in the afternoon, and neither interferes with the other. Total daily energy production is typically 10–15% higher than cramming both orientations onto a single MPPT.

Each MPPT has its own voltage and current limits that must be satisfied independently. You need to verify each MPPT's string configuration separately — a string that passes on MPPT1 does not automatically work on MPPT2, either because the panel count differs or because that second tracker has lower limits to begin with. Our calculator handles this automatically when you select multi-MPPT mode.

Placing south-facing and east-facing panels on the same MPPT forces the tracker to pick a single operating point for both groups. If south panels produce 40V per panel and east panels produce 35V (due to less direct sunlight), the tracker settles around 37.5V — suboptimal for both. The result is 5–15% energy loss compared to putting each orientation on its own MPPT.

The only exception is when two orientations receive nearly identical irradiance throughout the day — for instance, panels tilted just ±10° from due south. In that case, mixing them on one MPPT causes minimal loss. But for significantly different orientations (east vs south, south vs west, or anything more than about 30° apart), separate MPPTs are always the better choice.

A common complaint from system owners: 'My panels don't start generating until 9am even though the sun rose at 6am.' The usual cause is the string not reaching the voltage the inverter needs to switch on. Note that this is a different number from the MPPT minimum, and datasheets list both: the Deye SUN-8K-SG06LP1-EU-CM3 tracks down to 150V but starts up at 125V, while the SUN-8K-SG01HP3-EU-AM2 tracks down to 150V and needs 180V to wake up. Some models need more than their MPPT minimum, some less — read your own datasheet rather than assuming.

For Vmpp_morning, do not assume a collapse. Weak light lowers a panel's Vmpp far less than most people expect — roughly 10–15% below its STC figure, because voltage tracks light logarithmically rather than proportionally. Cold morning air pushes it back the other way: at 10°C cell temperature a −0.27%/°C coefficient adds about 4%. A 42V panel realistically sits near 38V on a cool clear morning, not 28V. Sizing a string on the pessimistic figure inflates the panel count for no reason, and every extra panel raises your cold-weather Voc toward the inverter's hard limit.

So if the array genuinely sits idle for hours after sunrise, check the string length against the startup voltage first — but also rule out the mundane explanations, because they are more common than a sizing error: an east-facing roof simply receives very little irradiance at a low sun angle, and a hill, building, or tree on the eastern horizon delays first light regardless of how the string is wired.

'Can I put 8 panels on MPPT1 and 6 on MPPT2?' — Yes. Since each MPPT tracker operates independently with its own voltage tracking and current handling, different string lengths across different MPPTs are fine. The requirement is that each string passes the voltage and current checks for the tracker it is wired to — which is not the same thing as passing them for the inverter, as the rest of this section explains.

Unequal strings are actually the recommended approach for east/west roofs where one side has more available space. Do not artificially limit your larger array to match the smaller one — use the full capacity of each MPPT. The inverter handles the power asymmetry without any issues, simply summing the output from both trackers.

When the trackers themselves are not equal

Here is the part most guides skip. On many inverters the MPPT inputs are not rated the same, and the headline figure on the datasheet — 'max input current 36A' — describes only the strongest one. In our database, 57 of the public multi-MPPT inverters across 10 brands have trackers with different limits. A few real examples:

Read the last two rows carefully: on the GoodWe and the KOSTAL the weak trackers come first and the strong ones last. That is why 'put the bigger array on MPPT1' is not a rule you can rely on — find the strong input in the datasheet's per-tracker table, then give it the array with the most panels or the most parallel strings. Our calculator stores each input's limits separately for these models and checks every tracker against its own numbers, so you do not have to track which one is which.

Let's distribute 14 LONGi panels across 2 MPPT trackers on a Deye hybrid inverter — 8 panels facing east, 6 panels facing west. Climate assumptions: −10°C minimum winter temperature, +40°C maximum summer ambient (65°C cell temperature at peak).

The same roof on the newer CM3 model

Deye's successor to this inverter, the SUN-8K-SG06LP1-EU-CM3, keeps the same voltage figures — 500V maximum, MPPT 150–425V — so every voltage line above is unchanged. What changes is the DC side: three trackers instead of two, rated 36A, 36A and 18A, accepting 2, 2 and 1 strings. Our 14 panels in two strings still fit comfortably, and the extra tracker is a welcome place for a future third orientation. But it is the 18A input, so a single string of these panels (14.27A hot) fits while two in parallel (28.5A) would exceed it by more than half. On the older SG05LP1 the same two-string plan would have been fine on either tracker. Nothing about the roof changed — only which input you picked.

1. Mixing different orientations on one MPPT

   East and south panels on the same MPPT forces the tracker to compromise between two different voltage levels. Use separate MPPTs for any orientations more than about 30° apart. Each MPPT should track panels that see similar sunlight intensity throughout the day — grouping by orientation ensures the tracker always operates at the true maximum power point.

2. Too few panels per string for MPPT startup

   Short strings of 3–4 panels may not reach the voltage the inverter needs to switch on, so it sits idle while the sun is already up. Check the string against the datasheet's startup voltage — a separate figure from the MPPT minimum, sometimes higher — using a morning Vmpp about 10–15% below the STC value, not the 60–70% collapse often quoted. Do not overcorrect either: extra panels bought for an earlier start also raise your cold-weather Voc.

3. Mismatched parallel strings on one MPPT

   Running 8 panels and 6 panels in parallel on the same MPPT wastes energy. The 6-panel string has lower voltage, which drags the operating point down for the 8-panel string. The MPPT cannot optimize both simultaneously. If you need different string lengths, put them on separate MPPTs where each tracker can optimize independently.

4. Ignoring per-MPPT current limits

   Two errors hide here. First, 'my inverter handles 52A total' does not mean one MPPT can take 52A — current limits are specified per input, so a 2-MPPT inverter at 26A per tracker means a strict 26A each, not 52A on one and nothing on the other. Second, and less well known: do not assume every tracker carries the same rating. The Deye SUN-10K-SG04LP3-EU is 26A on the first input and 13A on the second. Read the per-tracker table, not the headline figure.

5. Not checking each MPPT independently

   Every MPPT must pass all voltage and current checks on its own, for two separate reasons: its string may have a different panel count, and the tracker itself may have lower limits than its neighbour. A configuration that is comfortable on a 36A input can be well over the limit on an 18A one with exactly the same panels. Our calculator verifies each tracker against its own limits.

Use this table to quickly determine whether your installation needs one MPPT or multiple. When in doubt, choose more MPPTs — the cost difference is small compared to the flexibility gained.
